Beschreibung

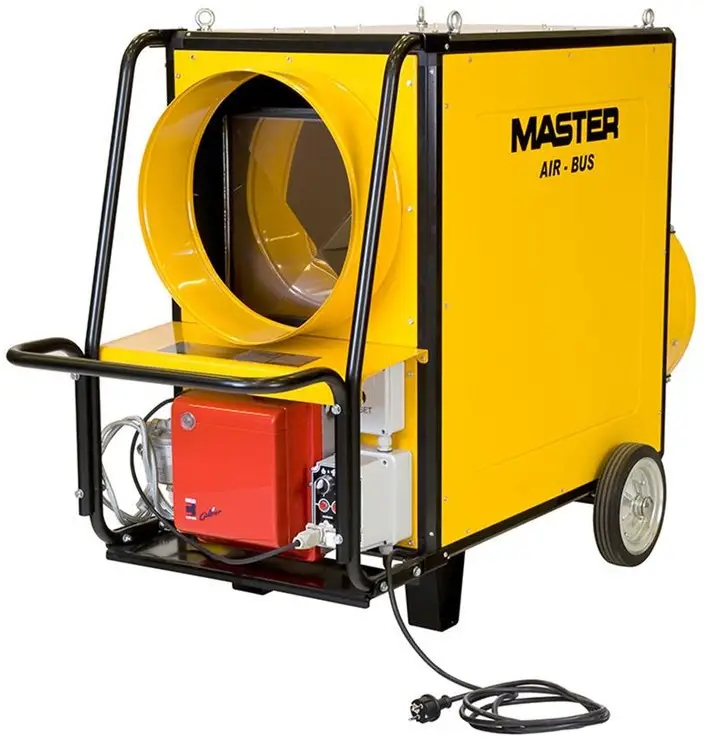

Master BV310FS Indirectly Fired Heater 75kW
Keywords
- Separate oil burner
- Electronic control light of flame with photocell
- Automatic overheating thermostat
- Safety thermostat
- Possibility of connecting a room thermostat
- Summer and winter switch that is for ventilation only
- Fuel heater
- Including trolley
- Combustion chamber made of stainless steel
- Large capacity heat exchanger
- Two oil filters: oil pump filter and squeegee filter
Technical data
- Performance: 75 kW
- Performance: 256,000 Btu / h
- Performance: 64,500 kcal / h
- Air flow rate: 4,400 m³ / h
- Fuel consumption: 6.4 kg / h
- Fuel: oil / gas
- Voltage: 220-240/50 V / Hz
- Rated current: 6.2 A
- Dimensions (L x W x H): 1500 x 620 x 1085 mm
- Net weight: 162 kg
- Diameter of the chimney connection: 150 mm
- Air outlet diameter: 1 x 450 mm
- Adjustable thermostat: possible (optional)
- Fan: axial
Standard included
- On Pallet
- Manual
