Rems 180010 Picus S1 Basic-Pack Diamond Core Drilling Machine
Special features Picus S1
- Compact, handy power tool for core drilling in reinforced concrete, masonry and other materials.
- Dry or wet drilling, manually operated or with drill stand.
- For installation, metalworking, industry.
- Reinforced concrete up to Ø 102 (132) mm
- Masonry up to Ø 162 mm
- Simple, fast, vibration-free.
- 1 system – 4 applications.
- Ideal for the installer.
- Universal drive machine for dry or wet drilling, manually operated or with drill stand.
- Usable anywhere, in difficult corners, to the wall.
- Extremely versatile and powerful, e.g. drilling in reinforced concrete, masonry and other materials.
- For pipeline and cable penetrations, ventilation ducts, pilot core drilling.
- Compact drive machine for vibration-free core drilling, with drill core thread connection UNC 1¼ outside, G ½ inside.
- Robust, suitable for the construction site.
- Super light, only 5.2 kg.
- Easy, fast work, e.g. 200 mm in reinforced concrete Ø 62 mm in only 3 min.
- Practical spade handle and counter holder for hand-held drilling.
- Clamping neck Ø 60 mm for inclusion of the drive machine in the drill stand.
- Water supply device for wet drilling, with adjustable shut-off valve and quick connector with water stop and hose connection ½“.
- Suction rotor for dust extraction for dry drilling with connection for commercially available vacuum cleaners, as an accessory.
- Robust, pull-through 1800 W universal motor.
- Speed loaded drill spindle 580 ¹/min.
- Stable, maintenance-free drive.
- Blocking protection by safety slip clutch.
- Tip switch with lock.
- Connection cable with integrated person protection switch
- Multi-function electronics with starting current limiting for slow start-up for sensitive drilling, automatic no-load speed limiting for noise reduction and motor saving, overload protection and locking protection for motor and drive.

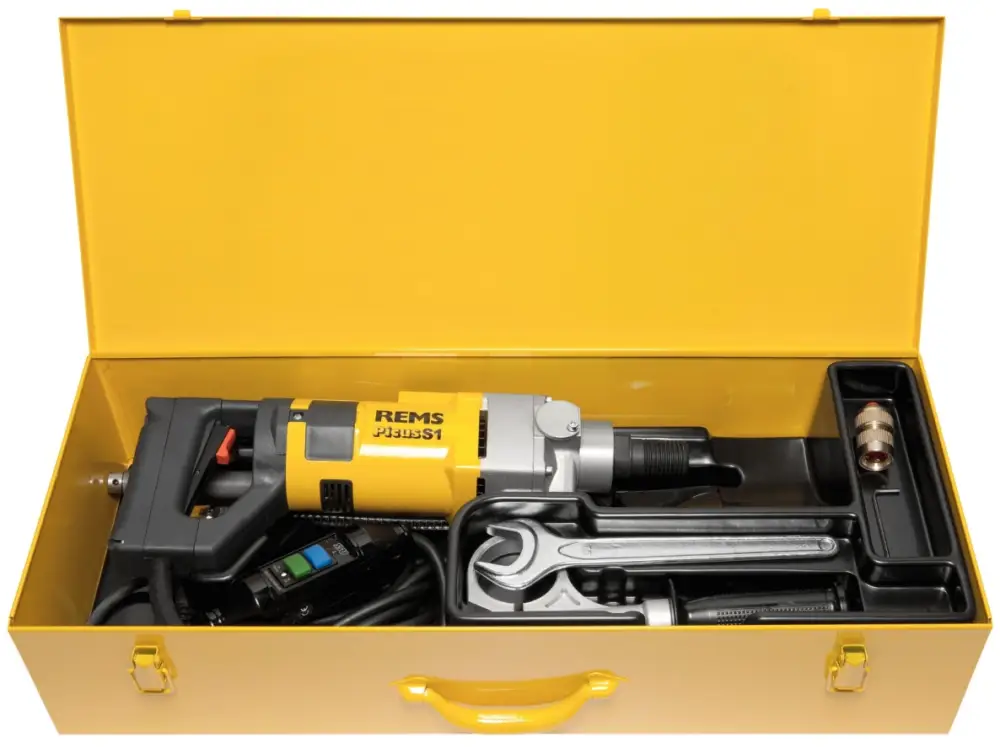

Standard included
- Counterholder.
- Drilling aid G ½ with drill bit Ø 8 mm,
- hex wrench SW 3.
- Open-end wrench SW 32.
- In sturdy steel case.
