Beschreibung
Rems 175010 R220 CamSys Set S-Color 30 H Electronic Camera Inspection System
Features CamSys
- Super light, handy camera inspection system for the inexpensive inspection and damage analysis of pipes, sewers, chimneys and other hollow spaces.
- With electronic meter counting
- Also for inspection after pipe cleaning and delivery of new installations or repairs.
- Documentation of images and videos on SD card
- For battery and mains operation
- Li-ion technology
- Buizen Ø (40) 50 – 150 mm
- Drains, chimneys, other cavities
- REMS CamSys – brilliant images and videos from pipes and sewers
- SD card slot
- With electronic meter counting
- For battery and mains operation.
- Controller unit with 3.5″ color display with state-of-the-art TFT-LCD technology for brilliant photos and videos, 89 mm screen diagonal, 320×240 pixels
- Particularly light and handy, only 0.4 kg
- Sturdy, impact-resistant plastic case, splashproof
- Compact dimensions: 172×111×58 mm
- Buttons for adjusting the brightness of the LEDs on the color camera head
- Full screen, 2 way zoom and mirror function
- SD card slot with spring mechanism.
- Photos and videos can be stored on SD card for easy documentation of the inspection result.
- Date and time of recording as well as camera shutter speed can be saved on the photo or video if required.
- While recording a video, additional still pictures can be taken without affecting the video recording.
- Direct playback of saved recordings or transfer by SD card to other devices.
- While displaying saved videos on the controller“s color display, photos of the video images can also be taken.
- USB connector for direct connection to PC or laptop
- Video output
- Composite-Video
- PAL/NTSC for connecting an external screen
- Connection for power source/charger Li-ion 100-240 V
- Special colour camera with high resolution
- Special high-resolution colour camera Ø 25 mm with CMOS image sensor and 8 ultra-bright white light emitting diodes (LEDs) with adjustable brightness up to 330 mcd and concentrated beam angle for brilliant colour pictures with uniformly bright illumination.
- Low light requirement due to very high light sensitivity (0.5 Lux).
- Fix focus and special lens with 70° wide angle, also for recognition of the smallest details

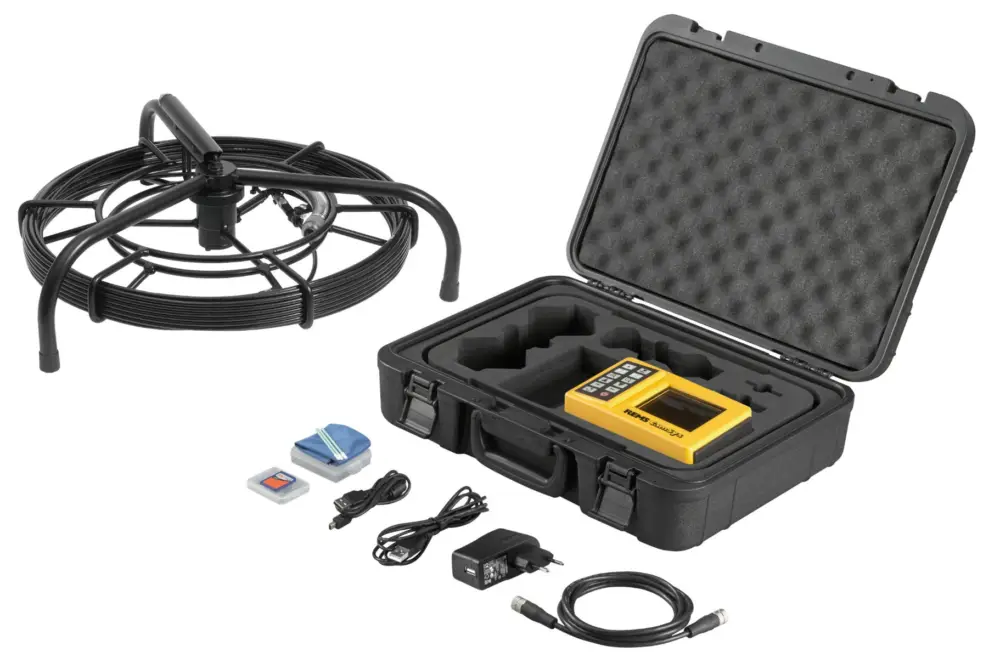

Includes
- Connecting cable
- Charger/voltage source
- Sd card 2 Gb
- Usb cable
- Video cable
- Suitcase
- Camera cable set S-Color 30 H with special colour camera Ø 25 mm 30 mtr sliding cable in reel with meter reading
‚
